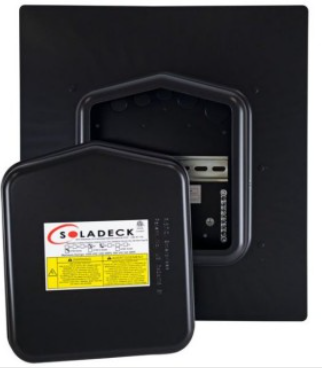

SolaDeck SD-0799-5B 600V Flashed Combiner/Passthrough Box Black

SolaDeck 0799-5B Flashed Enclosure, For Composition Roofs, 600VDC, AC/DC, 7" DIN Rail, 15.25"x17.25"x3", 5 Position Ground Busbar, NEMA 3R, UL1741, Black

All SolaDeck weather-tight enclosures are rated for NEMA 3R use. They provide a flashed roof penetration to transition outdoor system wiring to interior house wiring. All have a ground lug and universal DIN rail to mount fuse holders or terminal blocks. The base back has five roof-deck knockouts - (3) ½", (1) ¾", and (1) 1" and the base riser has dimples to center a punch or drill for entry conduit or fittings.

The 0799-5B is listed to UL 1741 for Photovoltaic Combiner Enclosures and can be used to combine or pass-through wiring of both AC and DC circuits. The 18 gauge, galvanized 90 steel and powder-coated finish provides a professional look.

NOTE: Same enclosure is also available in Grey.

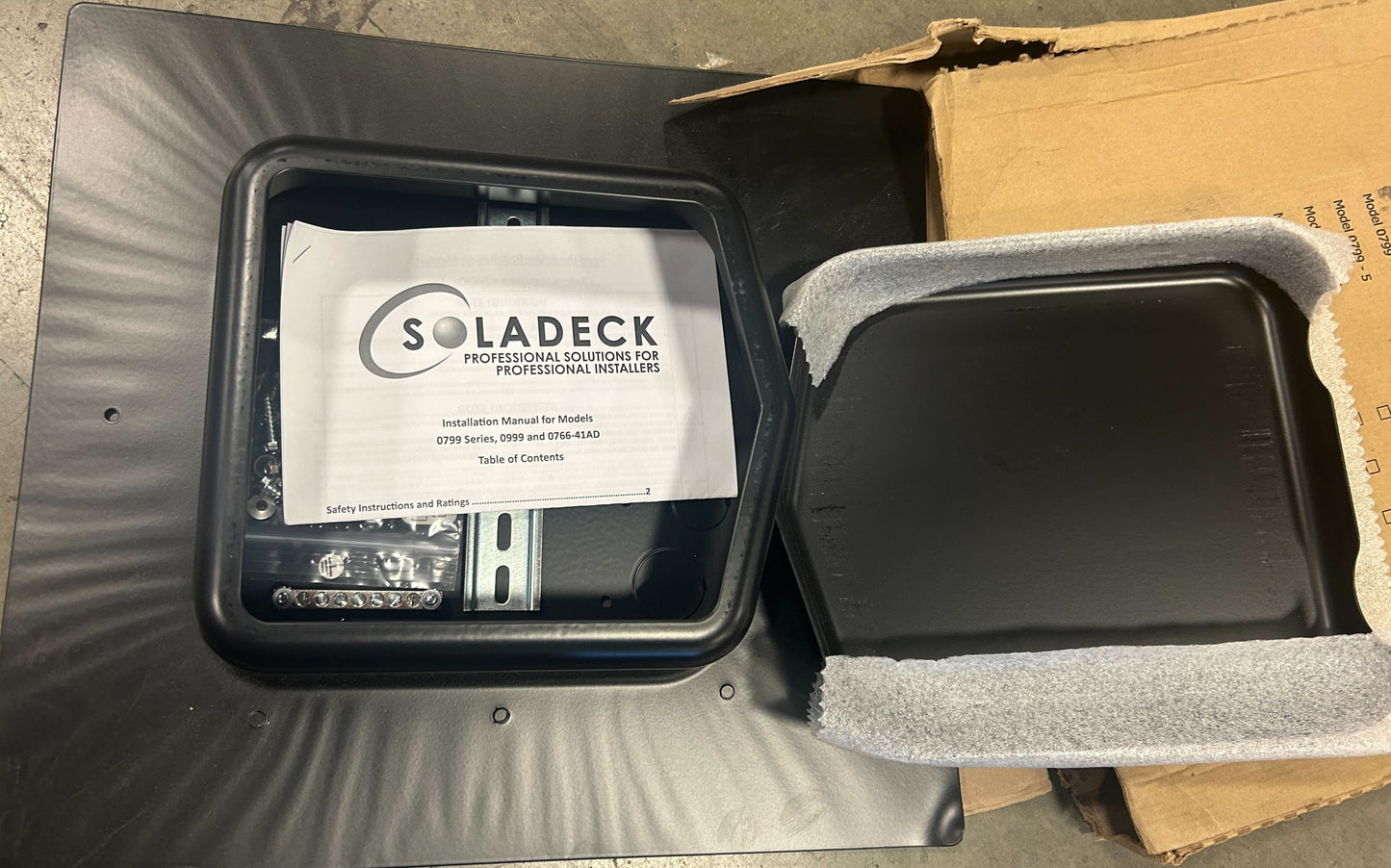

Includes

• 7" 35mm Slotted DIN Rail
• 5-Position Ground Block for 14-4 Wire
• Mounting Hardware
• All Other Parts Sold Separately

Features

• Stamped Seamless Construction
• 18 Gauge Galvanized 90 Steel
• Powder Coated Surfaces
• Flashes Into the Roof Deck
• UL50, NEMA Type 3R Water-Tight Enclosure
• ETL Listed and Labeled to the UL 1741 Standard
• Rated 240VAC, 60A
• Rated 600VDC, 115A
• (5) Roof Deck Knockouts - (3) .5", (1) .75", (1) 1"
