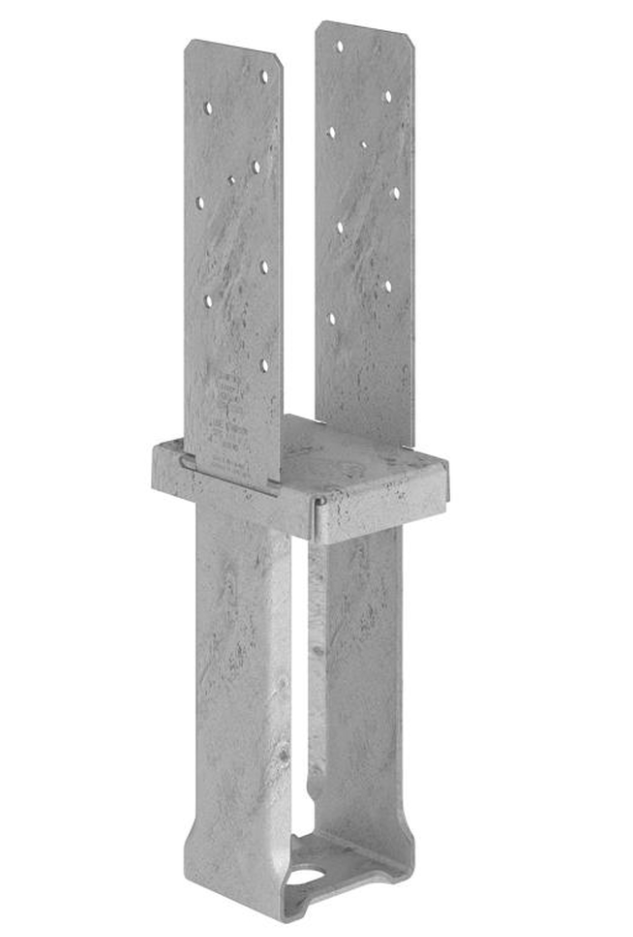

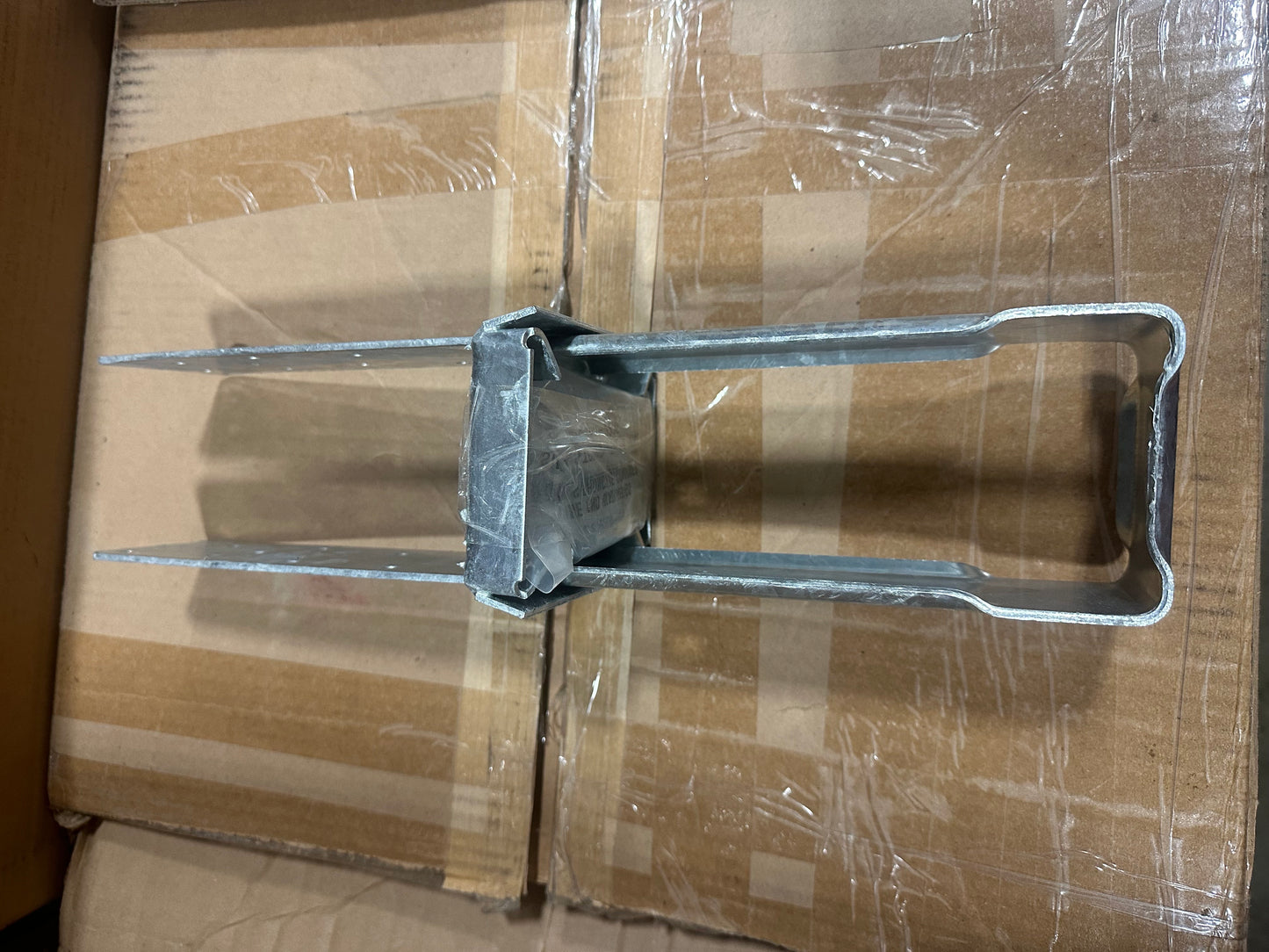

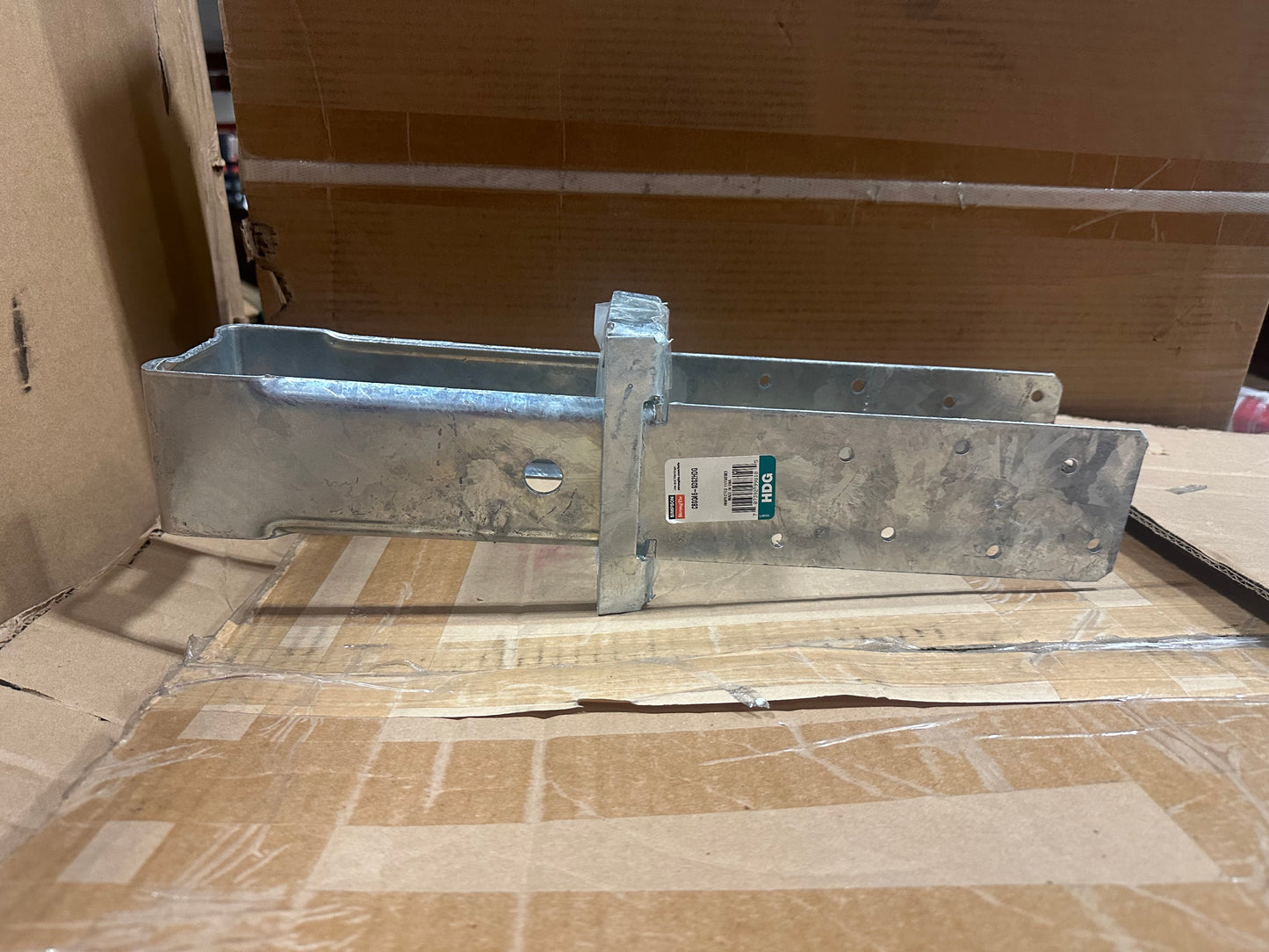

Simpson Strong-Tie - CBSQ46-SDS2HDG - 8.69 in. H X 3.56 in. W 12 Ga. Hot Dip Galvanized Column Base

The CBSQ is designed to be the interface between columns and their foundations. The main function of this column base is to link the column to the concrete footing surface and thereby transmit the structure's stresses to the foundation. The CBSQ uses Strong-Drive SDS Heavy-Duty Connector screws (included), which allow for fast installation and reduced reveal, and provide a greater net section area of the column than bolts.

• 1" standoff of the CBSQ meets code requirements for structural posts installed in basements or exposed to weather or water splash
• SDS Heavy-Duty Connector screws that provide a greater wood net section area than bolts
• Embeds in wet concrete at time of pour
• Gauge: 12
• Material: Hot Dip Galvanized
• Nominal Column Size: 4 x 6
• Product Type: Column Base
• Style: Standoff
• Brand Name: Simpson Strong-Tie
• Width2: 5-5/16 in.
• Strap Gauge: 10 gauge
• Height: 8.69
• Strap Width: 3 in.
