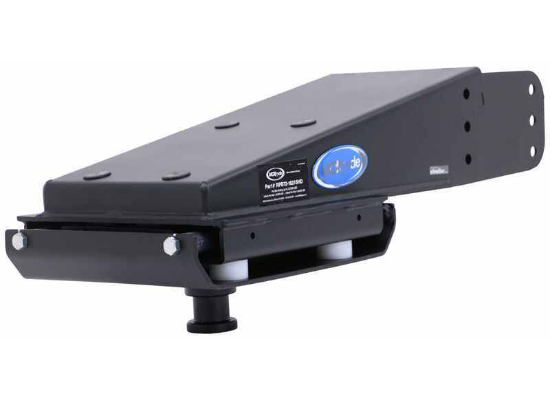

MORryde Cushioned 5th Wheel Pin Box for 18K to 23K Trailers w/ Lippert 1621SHD

Upgrade the factory pin box on your fifth-wheel trailer to this cushioned model that dampens road shock and reduces back-and-forth chucking for a more relaxed towing experience. Unlike air bags, the internal rubber spring requires no maintenance.



Features:

• Cushioned pin box replaces your factory model for a smoother towing experience
  • Provides a more relaxed and comfortable ride when hauling your trailer
  • Limits the stress put on your trailer during long road trips
• Rubber shear spring absorbs and dampens road shock and vibration
  • Reduces back-and-forth chucking while towing over uneven roads
  • Helps eliminate jerking when starting and stopping
  • Requires no maintenance, unlike internal air bags
• Internal glide pads allow the skid plate to shift forward and backward and side to side
  • Allows for smoother maneuvering
  • Also helps to reduce chucking
• Bolt-on installation no drilling required
  • King pin sits in same location as factory king pin
• Made in the USA



Specs:

• Application: 5th-wheel trailers with over 18,000-lb GVWR (maximum loaded weight)
  • Designed to replace Lippert 1621SHD pin box
• Pin box weight capacity: 23,000 lbs
  • Do not exceed the GVWR that is listed in your trailer's manual
• Spring capacity (for optimal ride): 18,001 lbs - 23,000 lbs
• Fore-and-aft movement of skid plate: up to 3"
• Side-to-side movement of skid plate: up to 1-1/2"
• 3-Year limited warranty (or 70,000 miles)



Rubber Shear Spring Absorbs and Dampens Road Shock

Most standard pin boxes are constructed of steel and are built with the sole purpose of connecting your fifth-wheel trailer to your tow vehicle. There is no cushioning built in, so a factory pin box doesn't do anything to provide a comfortable ride when you're hauling your fifth-wheel trailer.



This MORryde pin box, however, is built with an internal rubber spring that absorbs road shock and vibration at the connection point. So if you're driving on unpaved roads or uneven pavement, this pin box will prevent any road shock and vibration you encounter from transferring from your tow vehicle to your fifth-wheel trailer and vice versa. In other words, the rubber spring takes the brunt of the impact so you and your towing setup don't have to. And because this unit uses a rubber spring instead of an internal air bag like some other upgraded pin boxes, there's no maintenance required.



The internal rubber shear spring in this pin box is optimized for trailers that range from 18,001 lbs to 23,000 lbs to ensure that it provides just the right amount of shock absorption for your application. If this pin box were to be used on a larger trailer, the spring would be too stiff to provide enough cushion. And if your trailer's GVWR was less than 18,000 lbs, then the spring would be too flexible to provide adequate support.



Less Chucking for a Better Ride

Chucking, the back-and-forth jerking movement you feel in your cab when towing, occurs most frequently during starts and stops and while making turns. A typical, factory pin box creates a rigid connection without much give. So when a harsh stop occurs, all of the trailer's forward momentum gets forced through that stiff connection, slamming the king pin in the hitch and jerking your truck around.



To combat this, glide pads are built into the MORryde pin box that allow the skid plate to shift up to 3" forward and backward and 1-1/2" side to side to compensate for some of that violent motion so that you don't have to feel it in your cab.



Bolt-On Installation



This MORryde pin box is a direct replacement for your existing Lippert 1621SHD pin box, so the installation is very straightforward. After removing your old Lippert pin box, the MORryde can be mounted into place using the same hardware and bolt holes used by the factory pin box.



Because of the weight of the unit, you'll want a couple of friends to help you lift it into place during installation. Once the hardware is securely bolted down, you'll be ready to go.
