Make	Series	Additional Information
Ford	F650	Models with 23,000 lb Multi-leaf Rear Springs
Ford	F750	Models with 23,000 lb Multi-leaf Rear Springs



About this item

• Class 3-6 vehicles and heavy duty suspension
• 1 3/8" bore, 10-stage valving
• 360 degree arc welded end mounts protect against end mount breakage
• Floating piston seal design self-compensates for wear
• Multi-lip piston rod seal provides backup seal protection



Specifications

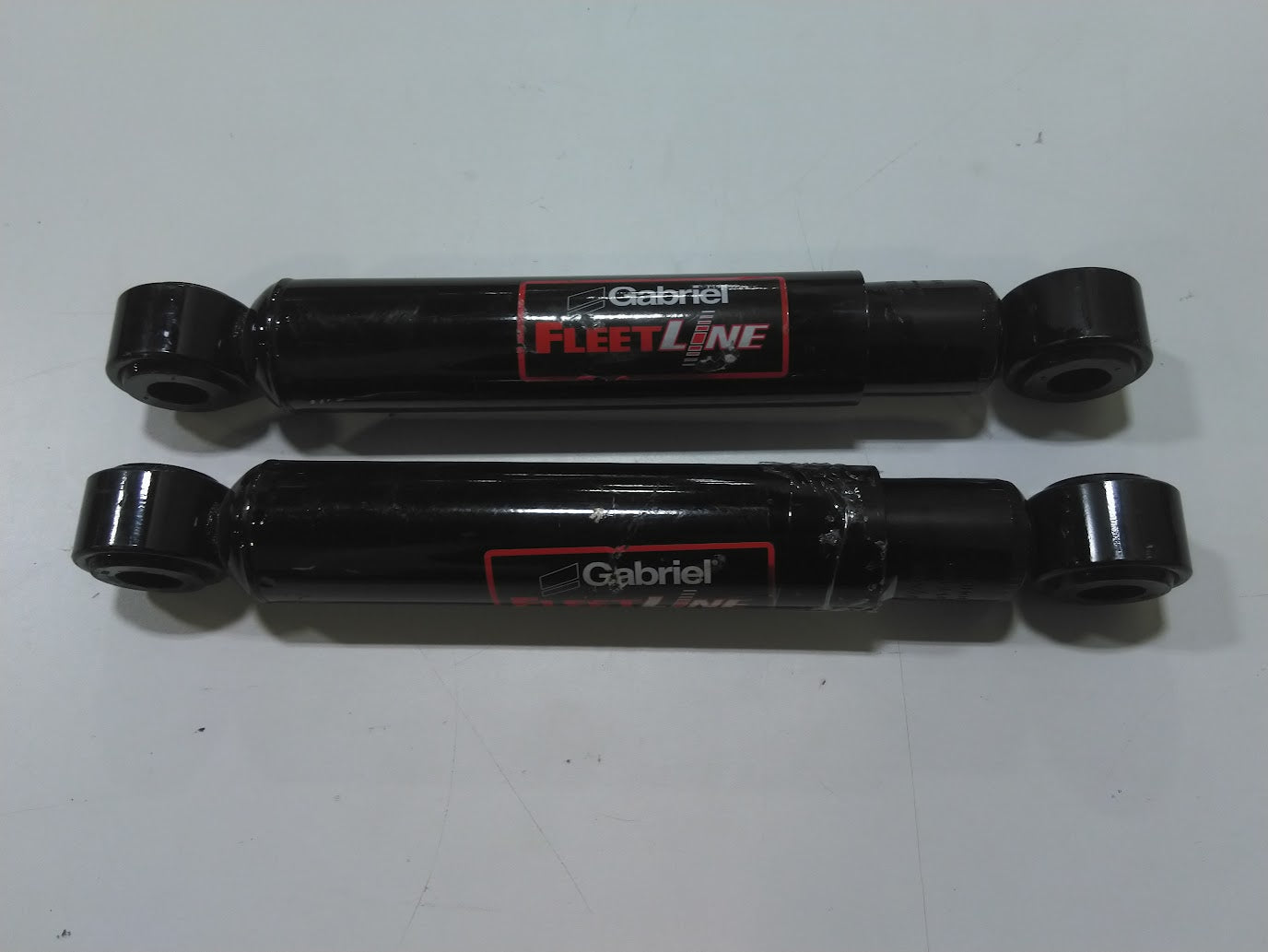

Product Line:	FleetLine

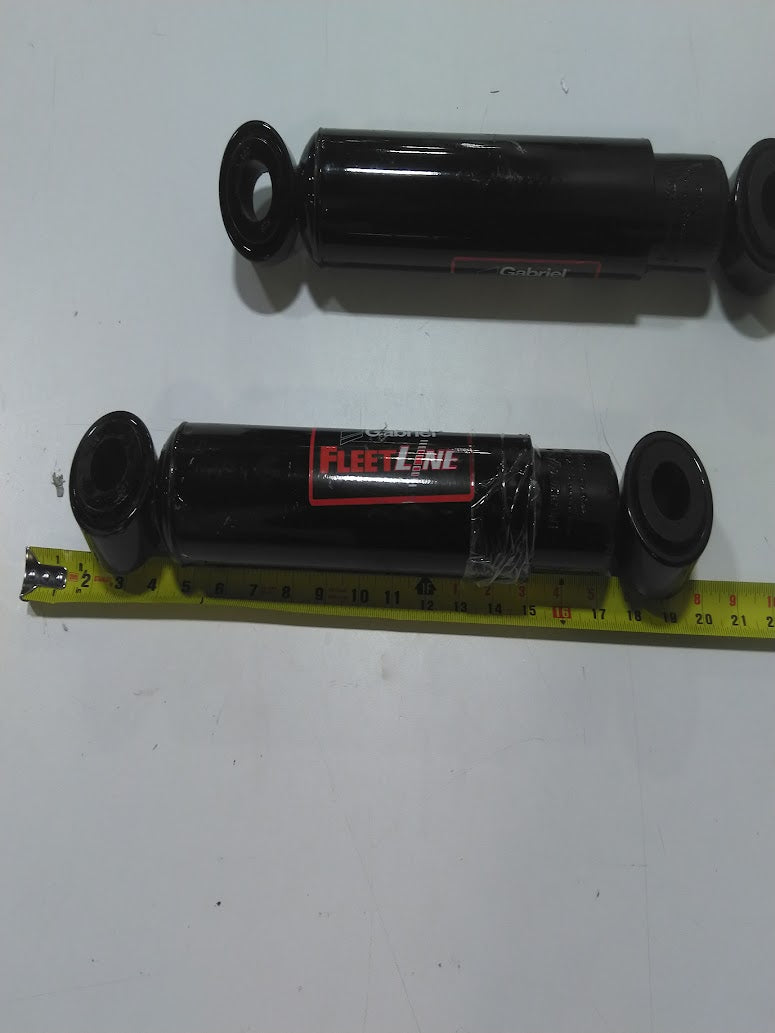

Extended Length:	25.28 in.	642.11 mm.

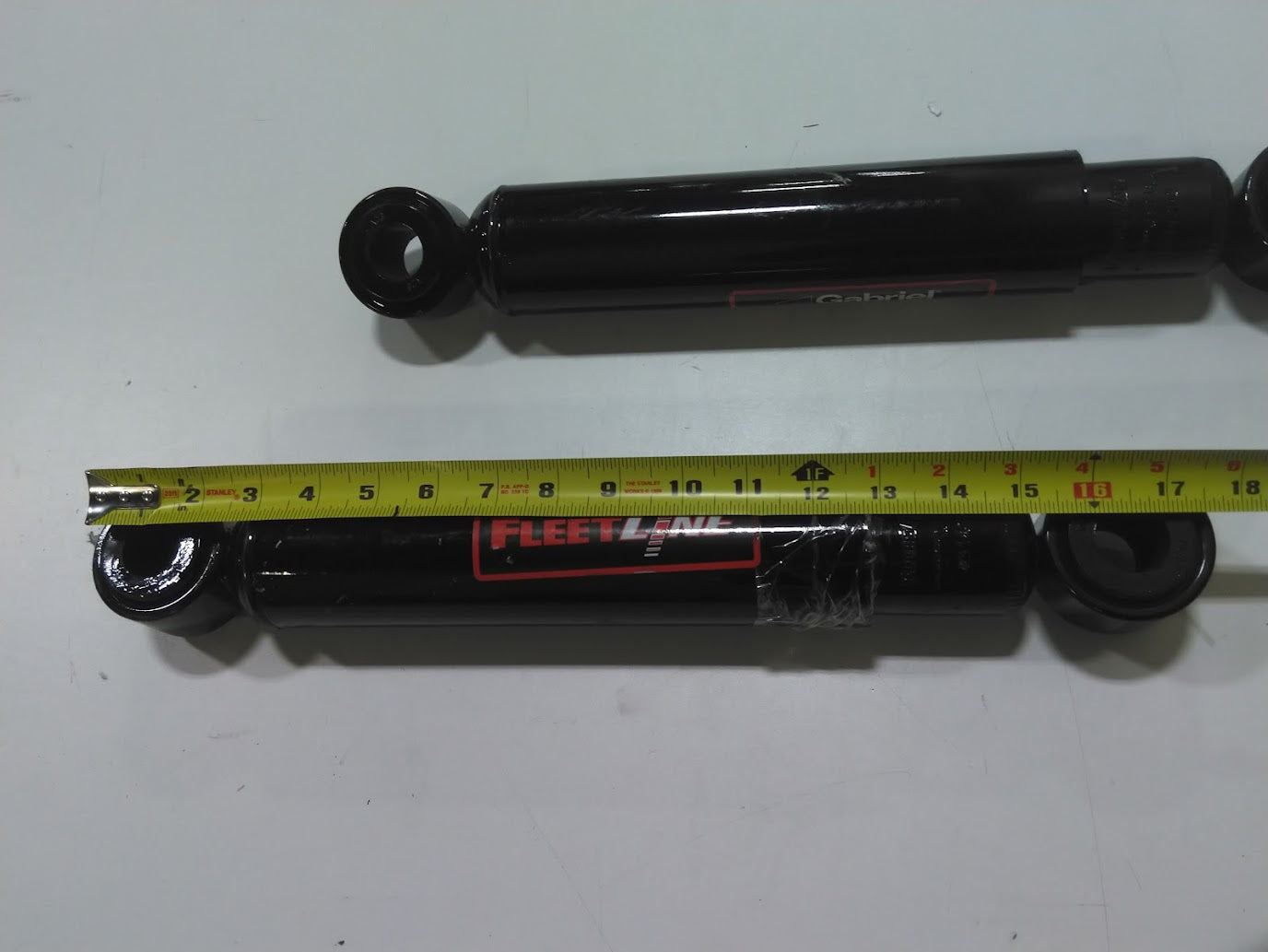

Collapsed Length:	15.53 in.	394.46 mm.
Stroke:	9.75 in.	247.65 mm.
Bore:	1-3/8 in.
Dust Tube:	YES
Recoil Cutoff:	NO
Rebound:	738 lb.
Compression:	88 lb.



Mounting Information

Upper Mount Code:	EB3
Upper Mount Kit  (QTY):	415010-802 (2)
Lower Mount Code:	EB3
Lower Mount Kit  (QTY):	145148 (2)

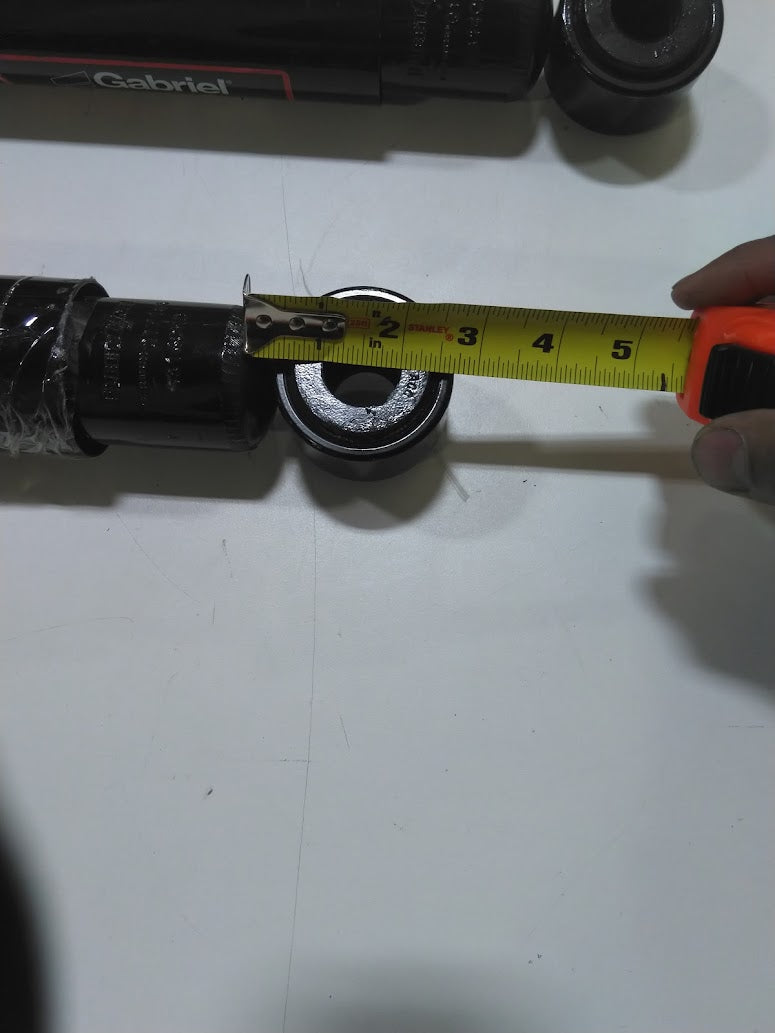

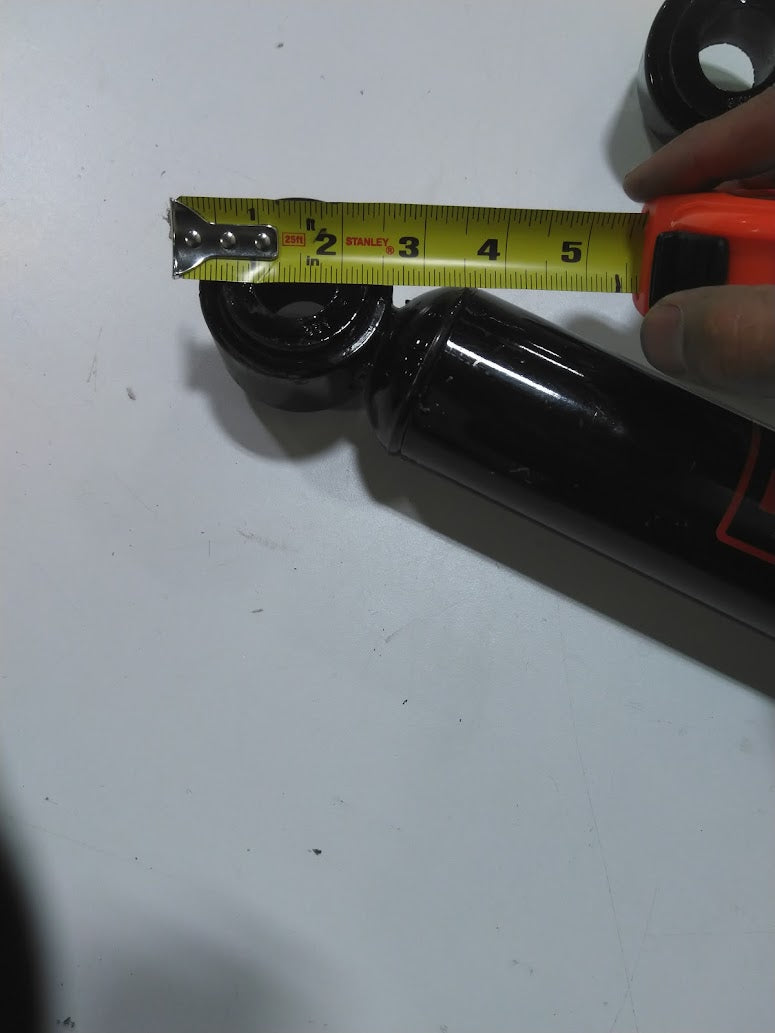

External Diameter Illustration:	A
