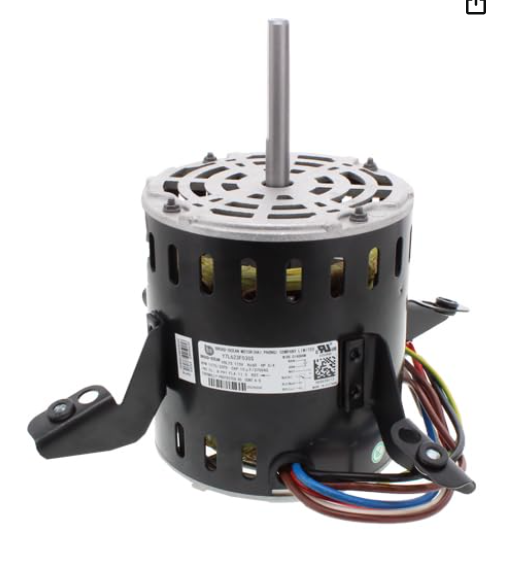

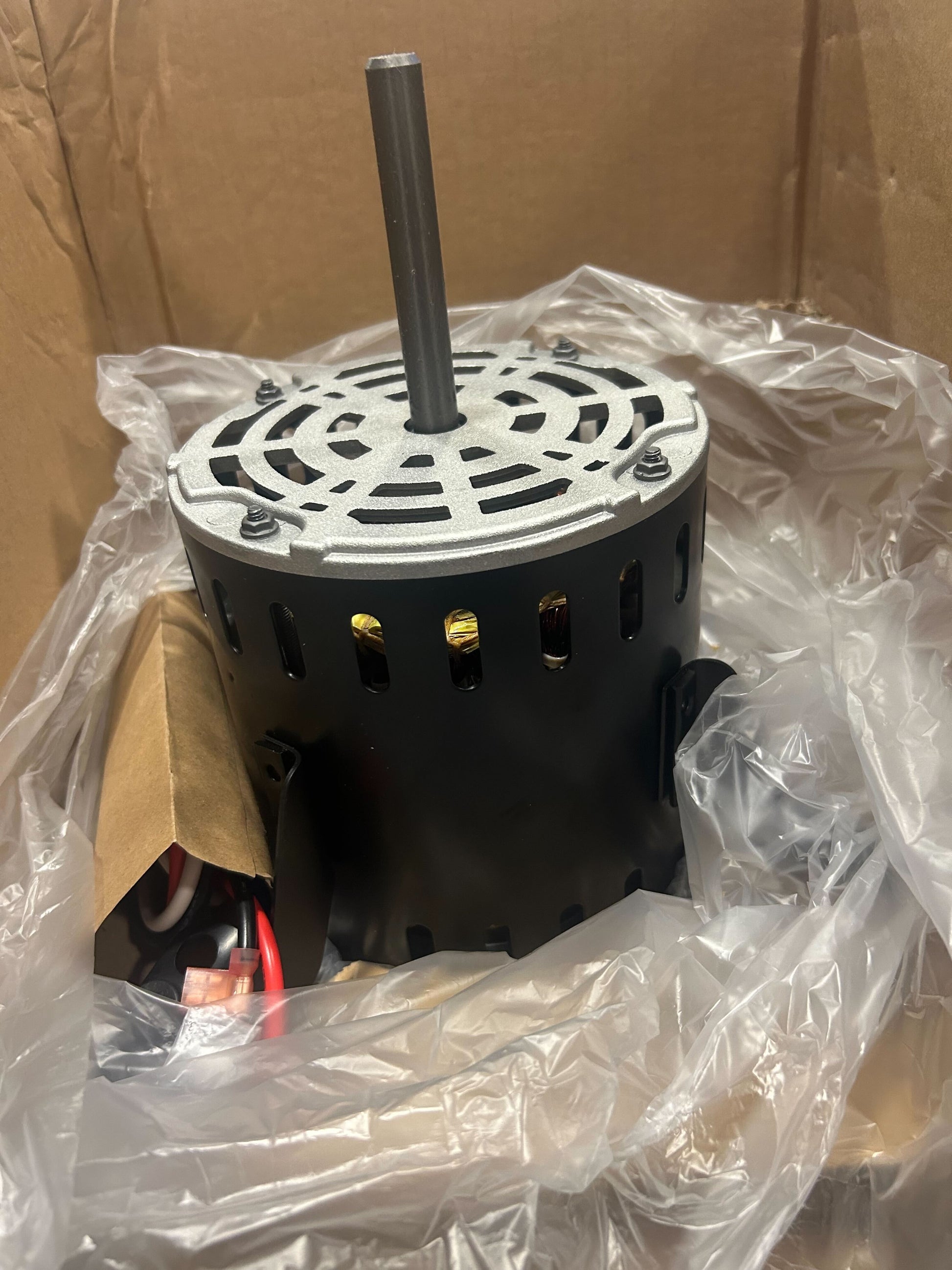

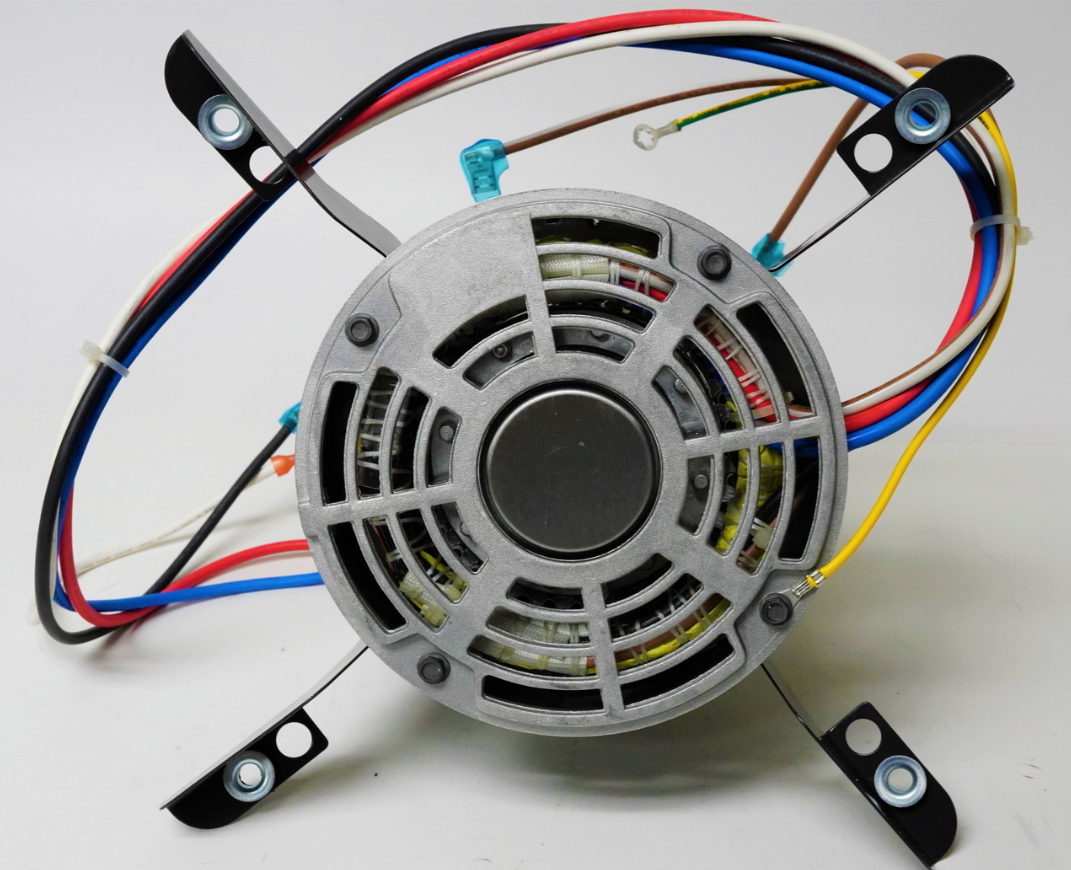

Broad Ocean HC46TQ113 - OEM Upgraded 3/4 HP Furnace Blower Motor Replaces Payne HC46TQ113 S2

Broad Ocean HC46TQ113 - OEM Upgraded 3/4 HP Furnace Blower Motor Replaces Payne HC46TQ113 S2

Regular price $239.00 USD
Regular price Sale price $239.00 USD
Sale Sold out

Direct replacement for Carrier, Bryant and Payne numbers HC45TE113, 5KCP39PGV623C, and HC24HE230. Motor was changed from 11 amp to 9 amp

Motor Specifications:

  • 115 Volts
  • 9.0 Amps
  • 1075 RPM
  • Three (3) Speed
  • Capacitor Start
  • Capacitor Not included, it is a 10mfd x 370Vac.
  • Ball Bearing
  • 48 Frame
  • 5-5/8" Diameter
  • Flex Mount 4 Mountings Ears
  • CW Rotation as viewing Shaft End
  • Shaft measures 1/2" diameter with Flat x 2-3/4" Long
  • Automatic Overload Protected

TJ/16001B/9548
